1000VA 2000VA Off Grid Inverter / Sine Wave Solar Based Inverter with 40A PWM

Name: 1000VA 2000VA Off Grid Inverter Sine Wave Solar Based Inverter with 40A PWM
Brand: SOROTEC
Price: 1 USD

Buy cheap 1000VA 2000VA Off Grid Inverter / Sine Wave Solar Based Inverter with 40A PWM product

Brand Name : SOROTEC

Model Number : SSP3111C 1000-2000VA

Certification : CE,ROHS,ISO9000

Place of Origin : China

MOQ : 1PCS (Sample are Available)

Price : Price Negotiable

Payment Terms : 30% TT in advance, the balance before shipping, L/C, T/T

Supply Ability : 50000PCS/Month for Inverter

Delivery Time : Within 15-30days after receiving your 30% TT deposit

Packaging Details : Standard Exported Cartons and Pallets for modified sine wave solar inverter

Product Name : Off Grid Solar Power Inverter with 40A PWM

Inverter Capacity : 1-2KVA

Nominal Voltage : 220/230/240VAC

dc Voltage : 12/24VDC

Wave Form : Modified Sine Wave

Built-in : PWM solar controller

Applications : computers/TV/DVD/Electric fan

Contact Now

SSP3111C Series 1000VA 2000VA Off Grid Solar Power Inverter with 40A PWM

Brief Descriptions:

SSP3111C Series is a type of off-grid solar power inverter ,which widely used to provide reliable and long time backup power supply for micro home and office equipments. its capacity from 1KVA to 2KVA modifies sine wave output for economic to use,it built-in with 40A PWM solar charge controller for high efficiency. LCD display the information in real-times and support wide and narrow input voltage range optional.

Key Features:

1.Built-in PWM solar charge controller.

2.Modified sine wave output.

3.High frequency design.

4.Optional input voltage range.

5.Full automatic and silent operation.

6.Automatic charging.

7.Automatic transfer AC-DC

8.Over-load protection.

9.Automatic restart.

10.Three-steps intelligent charging control to recharging.

11.LCD display, audible and visual alarm.

Typical Application:

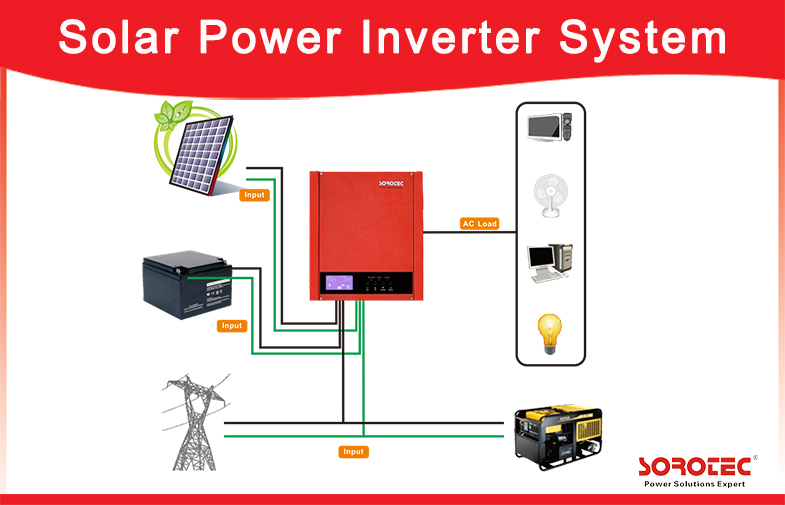

This type solar power inverter widely used to provide the reliable long time backup power supply for the household appliances office appliances (Personal computer/TV/DVD/Electric fan/FM Radio)solar power system.etc

Full Protection

Overvoltage /short circuit/ over temperature.......

Product Descriptions of Solar Inverter

Model	SSP3111C Plus 1000-2000VA
	1000-12	2000-24
Capacity	1000VA/720W	2000VA/1440W
Nominal Voltage	220/230/240VAC
Nominal Frequency	50/60Hz
Input
Voltage Range	170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range)
Frequency Range	50/60Hz
Output
Voltage Regulation	230VAC±10%
Frequency Regulation	50/60Hz±0.1Hz
Wave Form	Modified Sine wave
Utility to battery mode	15-20ms typical(narrow range); 40ms max(wide range)
Battery mode to Utility	10ms max
Battery mode efficiency	>80%
Line mode efficiency	>95% (battery full charged)
Battery
DC Voltage	12V	24V
Overcharge Protection	16V	32V
Charge Current	15A/20A	10A
LCD Display & LED Indicate
Line mode	Line mode 1, charge current >3A Green flashing every 2 seconds
	Line mode 2,charge current ≦3A Green solid lighting
	Off-charge mode Green flashing as cycle:
Battery Mode	Yellow lighting
Overload	Red flashing every 0.5 second
Fault	Red lighting
SOLAR CHARGE
Maximum PV Array Open Circuit Voltage	55VDC
PV Optimal Work Voltage	15V~18Vdc	30-36Vdc
Maximum Charging Current	50A
Maximum Efficiency	>96%
Standby Power Consumption	<20W
Environment
Temperature	0°C~40°C
Humidity	5%-95% (<40°C, Non-condensing)
Storage Temperature	-15°C~55°C
Elevation	<1500m
IP Proyection level	IP20
PHYSICAL
Dimension,D×W×H (mm)	298.9×250×105
Net Weight (kgs)	2.62	2.76
