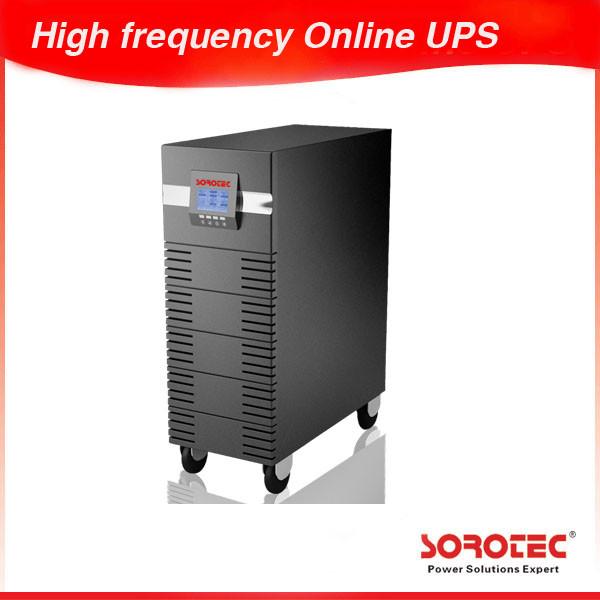

Large LCD Online UPS HP9316C 10-20KVA
Key Features:
●Large blue back light LCD for detailed Real-time UPS status display.
● Advanced online pure sine wave power supply system, with bypass repair switch, It can
provide a reliable,high quality AC power source to the precision equipments,can be used widelyin different fields.
● Widely used to computer equipments,telecommunication systems and Industrial automatic control equipments.
● Truly online design,different from offline,it can adjust the input voltage, filtering,when the AC break off,the UPS will provide an uninterruptible power source from the backup batteries.
● UPS will change to bypass mode when overloading or inverter fault,when overloading remov, UPS will turn to inverter mode automatically.
● N+N Parallel Redundancy and Capacity expansion for 6-20K(up to three units)
Trendy & Elegant LCD Design for real-time UPS system information:
Applications:
Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…
Technical Specifications of Online UPS HP9316C 10-20K (3Ph in/1Ph out)
| Model | HP9316C 10-20KVA |
| 10KT-XL | 15KT-XL | 20KT-XL |
| Rated Power | 10KVA/7000W | 15KVA/10500W | 20KVA/14000W |
| Rated Voltage | 380VAC 3phase with ground |
| Rated Frequency | 50/60HZ |
| Input |
| Voltage Range | 304～478VAC(±3VAC) |
| Frequency Range | 50HZ:(46～54HZ);60HZ:(56HZ～64HZ) |
| Power Factor | 0.98 |
| Output |
| Voltage Regulation | 208/220/230/240X (1±2%)VAC |
| Frequency Regulation | 50/60HZ±0.05 Hz |
| Power factor | 0.7 |
| Voltage distortion | Linear load<3% Non-Linear load<6% |
| Overload Capability | 110%～150% for 30s change to bypass model,Recover after load normal |
| Current Crest Ratio | 3:1 |
| Transfer time | 0ms(AC mode→ Battery mode) |
| Battery |
| DC Voltage | 240VDC |
| Recharge Current | 4.2A |
| Display |
| LCD | Display input/output Voltage, Frequency,
Battery voltage, Battery capacity, Loading rate. |
| Communication |
| Interface | Smart RS232, SNMP(optional) , USB(optional) |
| Environment |
| Operation Temperature | 0～40℃ |
| Humidity | 0～95% non-condensing |
| Storage Temperature | -25℃～55℃ |
| Sea level elevation | <1500m |
| Noise Level(1m) | <55dB |
| Physical Characteristic |
| Weight(KG) | N.W. | 47 | 54 | 54 |
| G.W. | 53 | 60 | 60 |
| Dimension(D x W x H)mm | 570 X260 X717 |
Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2 GB/17626.2~5/IEC61000-4-2~5 SAFETY:GB4943
Note: Product specifications are subject to change without further notice
